詳細情報 |
|||
| モデル番号: | vs-052〜vs-400 | 調整された形式: | 転換のタイプ |
|---|---|---|---|
| 作業型: | ロータリー | プレッシャー: | 中圧 |
| 作業温度: | 通常の温度 | 演技タイプ: | スプリングリターン |
| 材料: | アルミニウム | 構造: | ラックとピニオン |
| 回転式動き: | 0-90 | 生産能力: | 50000pc / y |
| 動作原則: | 圧縮空気を回転運動に変換します。 | 工事: | シリンダーハウジング、ピストン、ラックアンドピニオン |
| ロータリーモーションコントロール: | 回転角度を正確に制御 | コンパクトデザイン: | 小型パッケージで高トルク |
| 応答時間: | 高速作動 | ||
| ハイライト: | 90-Degree Rotation Pneumatic Actuator,Medium Pressure Rotary Actuator,Normal Temperature Rack and Pinion Actuator |
||
製品の説明
Air Torque Type Valve Cylinder Rotary Pneumatic Actuator
Pneumatic Quarter-Turn Actuator / Pneumatic Rotary Valve Actuator / Air Gear Actuator
A rack and pinion pneumatic actuator converts compressed air pressure into precise rotary motion for industrial applications. This robust mechanism delivers reliable performance in demanding environments.
Key Features and Benefits
- Precise Motion Control: Converts linear piston movement into accurate 90° rotary motion
- Compact Design: High torque output in a space-efficient package
- Rapid Response: Fast actuation for time-sensitive operations
- Durable Construction: Aluminum or stainless steel housing withstands harsh conditions
- Easy Integration: Direct valve mounting with Namur-compatible position indicator
- Versatile Applications: Suitable for process control, automation, HVAC, and fluid handling systems
Technical Specifications
| Aspect | Description |
|---|---|
| Definition | Mechanical device for 90° valve rotation control |
| Working Principle | Converts pneumatic energy to mechanical motion |
| Key Components |
|
| Advantages |
|
| Applications | Industrial processes, HVAC systems, automation |

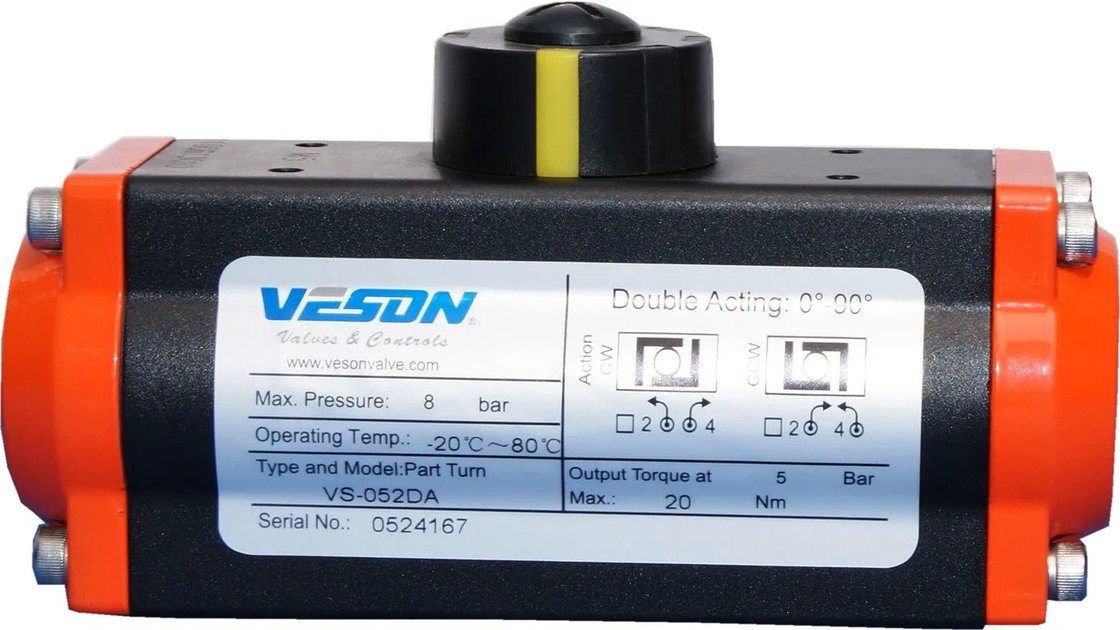

Product Images
For optimal performance, consider torque requirements, operating pressure, and environmental conditions when selecting this actuator for your specific application.
