詳細情報 |
|||
| モデル番号: | vs-052〜vs-400 | ピニオン材料: | 堅くされた合金鋼 |
|---|---|---|---|
| ピニオンメッキ: | ニッケルメッキ(15um以上) | アクチュエータ本体材質: | アルミニウム押出 |
| アクチュエーター本体の処理: | 硬質アルマイト処理（30um以上） | エンド キャップ材料: | 鋳造アルミニウム |
| エンドキャップ処理: | エポキシコーティング（80um以上） | ピストン素材: | 鋳造アルミニウム |
| ピストン処理: | 硬質アルマイト処理（30um以上） | 旅行調整: | 両方の位置で±5° |
| 春の素材: | 高い抗張鋼鉄 | スプリングコーティング: | 塗られるエポキシ |
| ベアリング素材: | 耐久性の高いコンパウンド | 取り付け標準: | ISO5211 & DIN3337 |
| 生産能力: | 50000pc / y | ||
| ハイライト: | Hard Anodized Aluminum Pneumatic Actuator,Epoxy Coated Valve Actuator,Travel Adjustment ±5º EL-O-Matic Actuator |
||
製品の説明

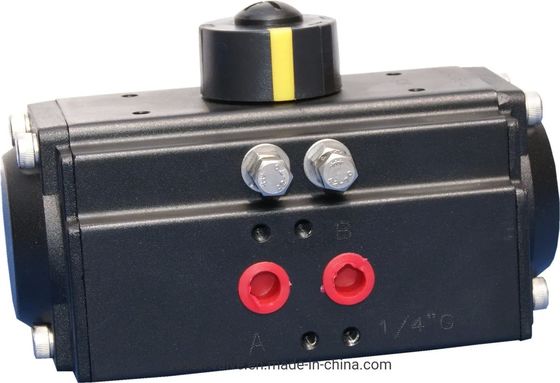

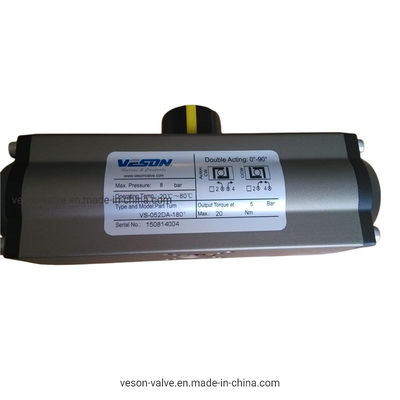

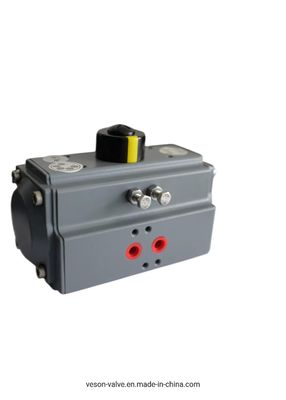

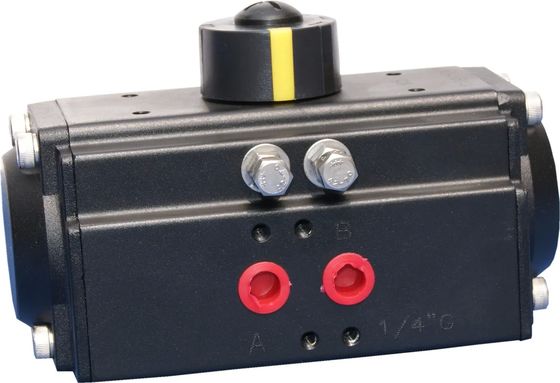

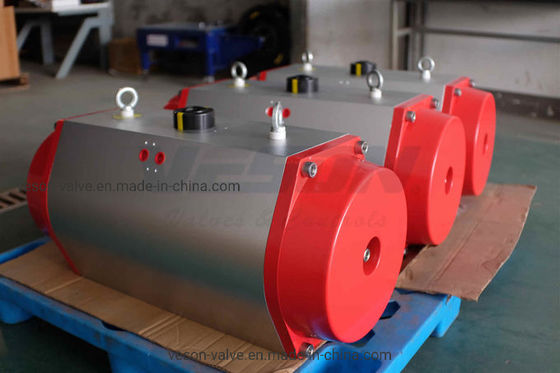

EL-O-Matic Type Valve Actuator Valve Automation
Key Features and Components
- Indicator Position indicator with Namur mounting for accessory attachment, standard on all VESON pneumatic actuators.
- Pinion Hardened alloy steel pinion precision ground and Nickel plated (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection with minimized piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
- End Cap Epoxy coated (over 80μm) die casting aluminum end caps for maximum corrosion resistance. PTFE Coated treatment available as an option.
- Piston Precisely balanced, hard anodized (over 30μm) die casting aluminum piston with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment Standard ±5° adjustment in both open and closed positions via easily accessible external adjustment bolts.
- High Performance Springs Epoxy coated high tensile steel springs for corrosion resistance and extended service life. Pre-loaded design allows safe, rapid disassembly.
- Bearings & Guides Highly durable compound material provides high thrust stability with minimal friction for long operational life.
Product Images
