詳細情報 |
|||
| モデル番号: | vs-052〜vs-400 | 力: | 空気圧 |
|---|---|---|---|
| 圧力方向: | 二重作用シリンダー | ピニオン材料: | 堅くされた合金鋼 |
| ピニオンメッキ: | ニッケルメッキ(15um以上) | アクチュエータ本体材質: | アルミニウム押出 |
| アクチュエーター本体の処理: | 硬質アルマイト処理（30um以上） | エンド キャップ材料: | 鋳造アルミニウム |
| エンドキャップ処理: | エポキシコーティング（80um以上） | ピストン素材: | 鋳造アルミニウム |
| ピストン処理: | 硬質アルマイト処理（30um以上） | 旅行調整: | ±5° |
| 春の素材: | 高い抗張鋼鉄 | スプリングトリートメント: | 塗られるエポキシ |
| ベアリング素材: | 耐久性の高いコンパウンド | ||
| ハイライト: | ISO5211 Standard Pneumatic Actuator,DIN3337 Standard Air Actuator,Hard Anodized Pneumatic Air Actuator |
||
製品の説明

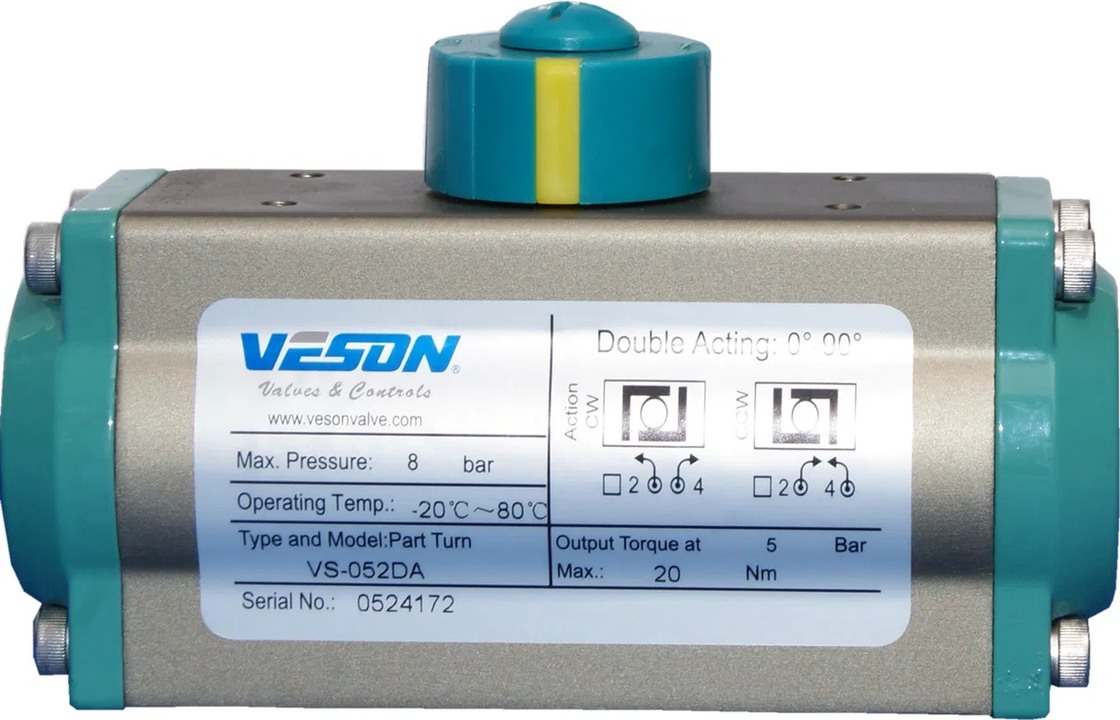

Actreg Type Aluminum Pneumatic Actuator
Position Indicator
Features a position indicator with Namur mounting for easy accessory attachment, standard on all VESON pneumatic actuators.
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Durable Actuator Body
Constructed from hard anodized (over 30μm) aluminum extrusion for superior wear and corrosion resistance while minimizing piston friction.
Optional coatings: Epoxy Coated and PTFE Coated versions available.
Robust End Caps
Epoxy coated (over 80μm) die-cast aluminum end caps provide exceptional resistance against corrosive elements.
Optional treatments include PTFE Coating.
Precision Piston
- Precisely balanced die-cast aluminum construction
- Hard anodized treatment (over 30μm) for durability
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design for safe and rapid disassembly
Premium Bearings & Guides
Highly durable compound material provides exceptional thrust stability with minimal friction for extended operational life.
