詳細情報 |
|||
| モデル番号: | vs-052〜vs-400 | 力: | 空気圧 |
|---|---|---|---|
| 圧力方向: | 二重作用シリンダー | ピニオン材料: | 堅くされた合金鋼 |
| ピニオンメッキ: | ニッケルメッキ(15um以上) | アクチュエータ本体材質: | アルミニウム押出 |
| アクチュエーター本体の処理: | 硬質アルマイト処理（30um以上） | エンド キャップ材料: | 鋳造アルミニウム |
| エンドキャップ処理: | エポキシコーティング（80um以上） | ピストン素材: | 鋳造アルミニウム |
| ピストン処理: | 硬質アルマイト処理（30um以上） | 旅行調整: | ±5° |
| 春の素材: | 高い抗張鋼鉄 | スプリングコーティング: | 塗られるエポキシ |
| ベアリング素材: | 耐久性の高いコンパウンド | ||
| ハイライト: | ISO5211 & DIN3337 Standard Pneumatic Actuator,Epoxy Coated End Cap Air Actuator,High Performance Springs Pneumatic Air Actuator |
||
製品の説明

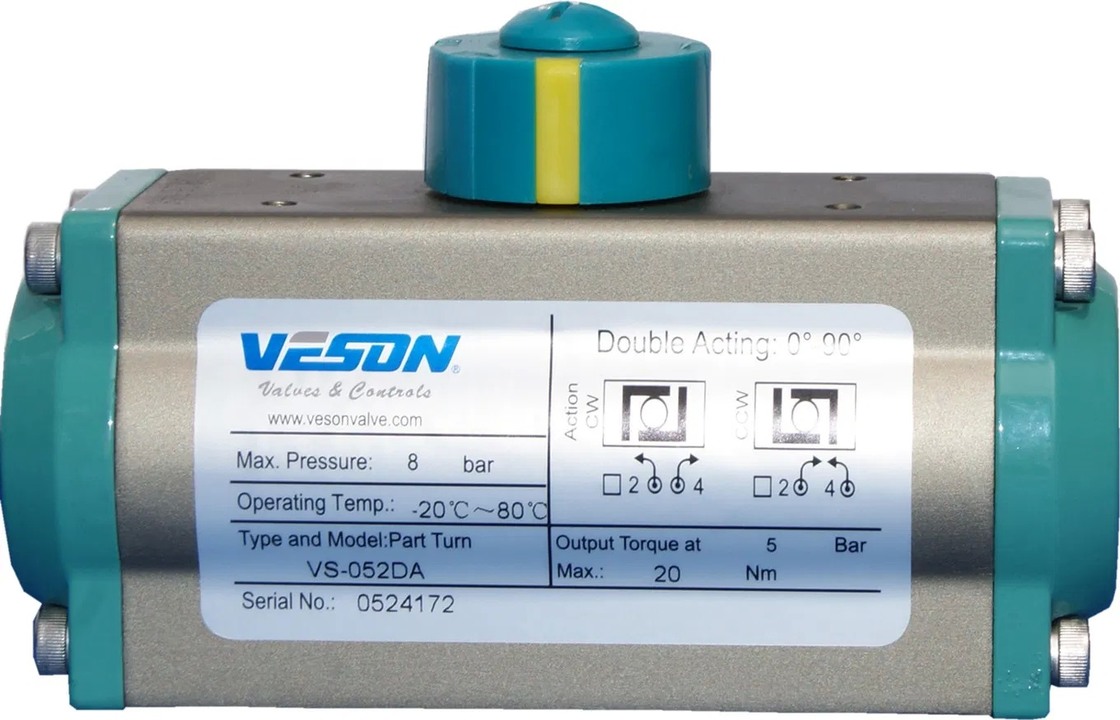

Air Torque Type Pneumatic Actuator
Position Indicator
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
Pinion
- Hardened alloy steel pinion precision ground and nickel plated (over 15μm)
- Reduces friction and provides maximum wear resistance
- Full conformance with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Actuator Body
- Hard anodized aluminum extrusion (over 30μm)
- Protects against wear and corrosion while minimizing piston friction
- Optional treatments: Epoxy Coated and PTFE Coated
End Cap
- Epoxy coated die casting aluminum (over 80μm)
- Provides maximum resistance against potentially corrosive elements
- Optional treatments: PTFE Coated
Piston
- Precisely balanced and hard anodized die casting aluminum (over 30μm)
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Travel Adjustment
Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel springs with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded springs can be safely and rapidly disassembled
Bearings & Guides
Highly durable compound material provides high thrust stability with minimum friction and long service life.
