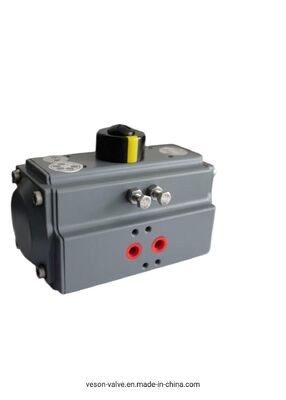

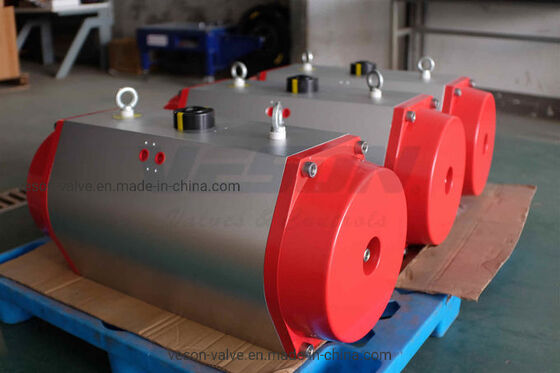

Max-Air Type Hard Anodized Aluminum Pneumatic Air Actuator with ISO5211 & DIN3337 Standard and Travel Adjustment ±5º

Max-Air Type Hard Anodized Aluminum Pneumatic Air Actuator with ISO5211 & DIN3337 Standard and Travel Adjustment ±5º

商品の詳細:

お支払配送条件:

最小注文数量: 1
ベストプライス 連絡先

詳細情報
型番: vs-052〜vs-400 力: 空気圧
標準: 標準 圧力方向: 二重作用シリンダー
輸送パッケージ: 木製の箱 仕様: CE,SGS
商標: ヴェソン 起源: 中国上海
HSコード: 84123900 生産能力: 50000pc / y
ハイライト:

Hard Anodized Aluminum Pneumatic Air Actuator

,

ISO5211 & DIN3337 Standard Valve Actuator

,

Travel Adjustment ±5º Pneumatic Actuator

製品の説明

  • Indicator
A position indicator with Namur mounting is standing on all VESON pneumatic actuator for mounting accessories.
  • Pinion
The hardened alloy steel pinion is precision ground and Nickel plated (over 15um) in order to reduce friction, provide maximum wear resistance. Full conformance with the newest standards of ISO5211 & DIN3337. The dimension can be customized and as options, stainless steel and aluminum alloy are also available.

  • Actuator Body
The aluminum extrusion is hard anodized (over 30um) to protect against wear and corrosion while reducing piston friction to the minimum. Other options as Epoxy Coated and PTFE Coated are available.

  • End Cap
Epoxy coated (over 80um) die casting aluminum end caps provide maximum resistant potentially corrosive elements. Other treatments such as PTFE Coated are available.Max-Air Type Hard Anodized Aluminum Pneumatic Air Actuator with ISO5211 & DIN3337 Standard and Travel Adjustment ±5º 0Max-Air Type Hard Anodized Aluminum Pneumatic Air Actuator with ISO5211 & DIN3337 Standard and Travel Adjustment ±5º 1

  • Piston
The precisely balanced and hard anodized treatment (over 30um) die casting aluminum piston are fitted with high quality and guides. The twin rack and pinion design creates a constant torque output on all actuators.

  • Travel Adjustment
The standard adjustment is ±5ºin both the open and closed positions through easily accessible external adjustment bolts.
  • High Performance Springs
The high tensile steel springs are coated with Epoxy coated for corrosion resistance and longer service. The pre-loaded springs can be safely & rapidly disassembled.

  • Bearings & Guides
The highly durable compound material provides high trust stability with minimum friction and long life.
