詳細情報 |
|||
| 型番: | VS-063 | チャネル: | タイプを直接介して |
|---|---|---|---|
| 構造: | ピストン | タイプ: | ラック＆ピニオン |
| Hsコード: | 84123900 | 生産能力: | 50000pc / y |
| ハイライト: | ISO5211 compliant pneumatic actuator,hard anodized rack pinion actuator,double acting spring return actuator |
||
製品の説明

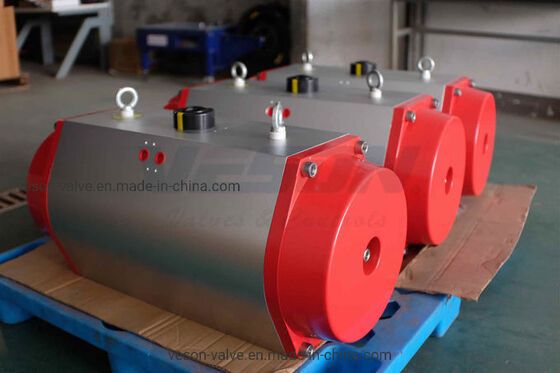

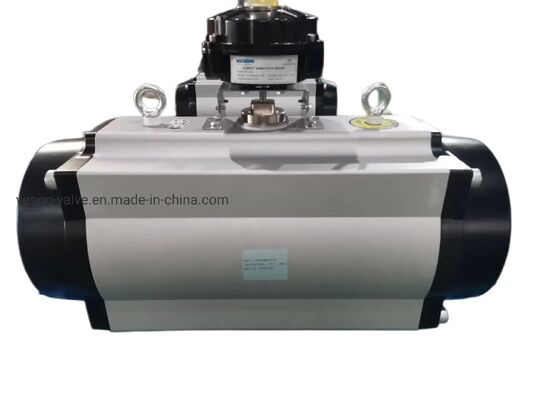

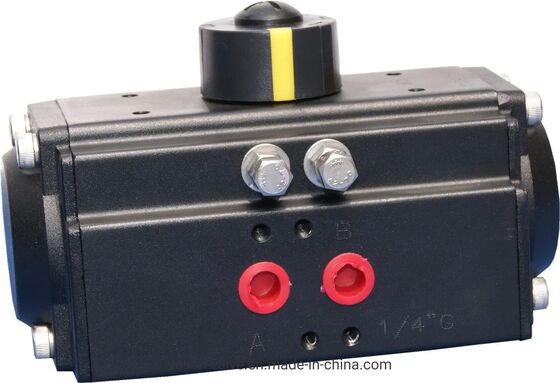

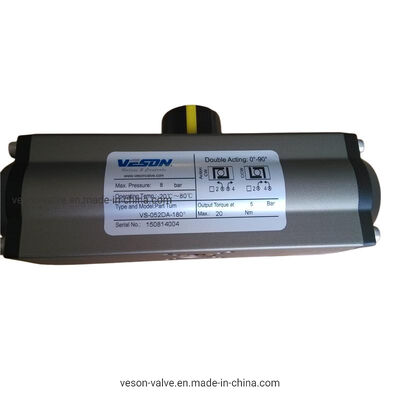

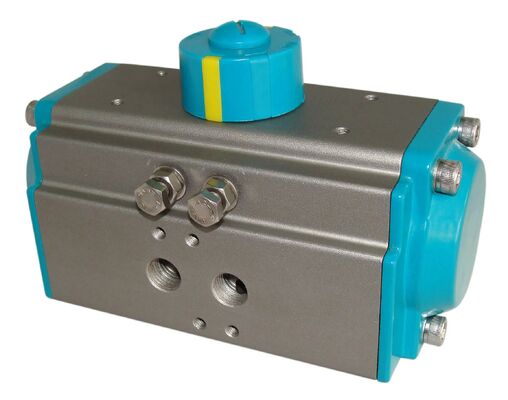

VS-063 (rack& pinion) have the following features.
> The output torque: Double: 43NM; Single: 7~16.4Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 43NM; Single: 7~16.4Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
