詳細情報 |
|||
| 型番: | VS-210 | 力: | 空気圧 |
|---|---|---|---|
| 標準: | 標準 | 圧力方向: | 二重作用シリンダー |
| 複動式シリンダー タイプ: | 棒二重シリンダー | 特別なシリンダー タイプ: | シリンダーの数 |
| 組み合わせたシリンダー型: | 加圧シリンダー | 設計基準: | ISO5211 DIN3337 |
| 輸送パッケージ: | 合板ケースパッケージ | 仕様: | 1インチ12インチ |
| 商標: | ベソンまたはクソマー "s | 起源: | 中国 |
| Hsコード: | 84123900 | 生産能力: | 50000pc / y |
| ハイライト: | aluminum alloy pneumatic actuator,hard anodized rack and pinion actuator,corrosion resistant epoxy coated actuator |
||
製品の説明

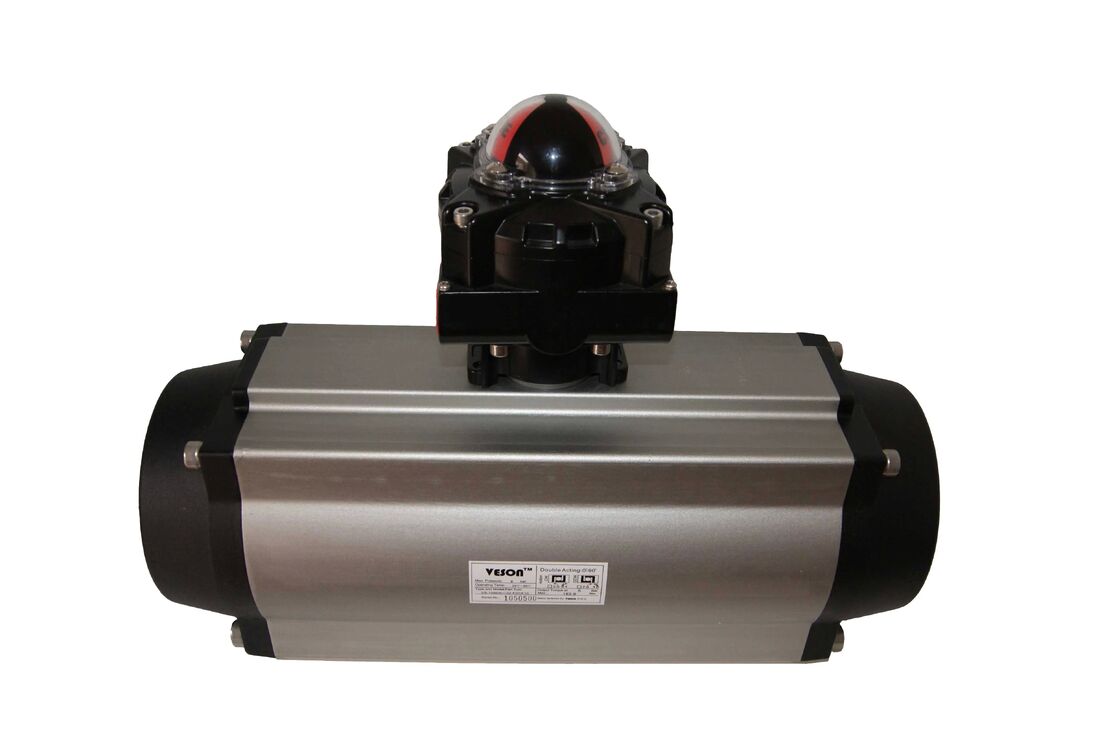

VS-210 (rack& pinion) have the following features.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
