詳細情報 |
|||
| 型番: | VS-083 | チャネル: | タイプを直接介して |
|---|---|---|---|
| 構造: | ピストン | タイプ: | ラック＆ピニオン |
| 標準: | ISO5211 | アプリケーション: | 産業用水 産業用水 |
| 輸送パッケージ: | 合板ケースパッケージ | 仕様: | VS/32DA～400DA。または52SR-400SR |
| 商標: | ベソンまたはクソマー "s | 起源: | 中国 |
| Hsコード: | 84123900 | 生産能力: | 50000pc / y |
| ハイライト: | VDI/VDE3845 pneumatic rack actuator,hard anodized rack pinion actuator,epoxy coated industrial pneumatic actuator |
||
製品の説明

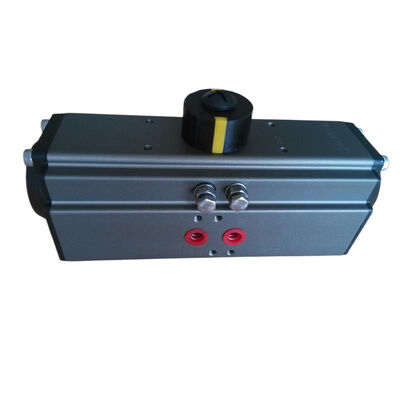

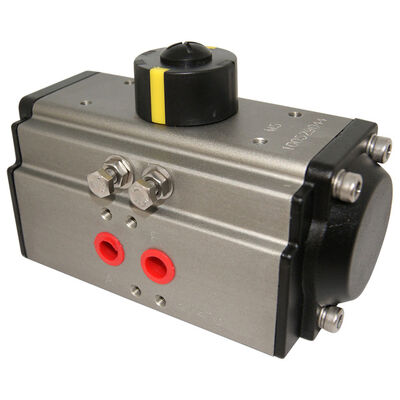

VS-075 (rack& pinion) have the following features.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
