詳細情報 |
|||
| チャネルタイプ: | タイプを直接介して | 構造: | フローティングボールバルブ |
|---|---|---|---|
| バルブタイプ: | フローティングボールバルブ | クラス評価: | 150＃--- 600＃PN16-PN110 |
| サイズ範囲: | 1/2 "-24" DN15-DN600 | 体材: | 炭素鋼、ステンレス鋼、デュプレックスステンレス鋼、ブロンズ、インコネル |
| 接続を終了します: | フランジエンド（RF、RTJ） | 操作タイプ: | マニュアル、電気ギヤ、空気 |
| 圧力評価: | クラス150 - クラス2500またはPN16 - PN420 | 材料オプション: | WCB、LCB、CF3、CF8M、CF3M、A105、LF2、F304、F304L、F316、F316L、Hastelloy、Super Duplex、Inconel、C95500、合金20 |
| 熱保存: | はい | 冷たい絶縁材: | はい |
| 流量直径: | 全径 | 漏れ性能: | 漏れはありません |
| 建設タイプ: | 単一 | ||
| ハイライト: | Pressure Rating 150#-600# Pneumatic Ball Valve,Size 1/2"-24" Jacketed Ball Valve,DN15-DN600 Steam Sulphur Ball Valve |
||
製品の説明

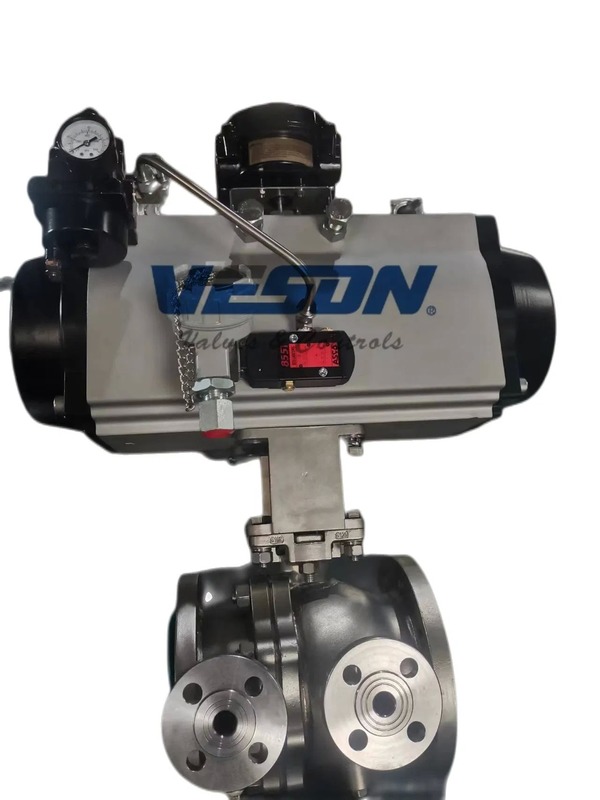

| PRODUCT NAME | Pneumatic Jacket ball valve |
|---|---|
| BRAND | Veson |
| ORIGIN | China |
| Packing | Plywood case |
| Class / Rating | 150#---600# PN16-PN110 |
| Size | 1/2"-24"DN15-DN600 |
| Materials | Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc |
| Ends | Flange End (RF, RTJ) |
| Operation | Manual, Gear, Pneumatic, Electric, etc |
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in petroleum, chemical, metallurgical, pharmaceutical, and food industries.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight than traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability compared to cast alternatives.
- Superior heat preservation and cold preservation capabilities
- Full-diameter design reduces media flow resistance
- Monolithic construction prevents leakage
- Compact and lightweight design
- Enhanced pressure resistance
Sizes: 1/2" - 24", DN 15 - DN 600
Pressure Rating: Class150 - Class 2500 or PN 16 - PN 420
Material of valve body: WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
