詳細情報 |
|||
| モデル番号: | VS-140SR08-FO | 接続フォーム: | フランジ |
|---|---|---|---|
| 運転モード: | 空気圧 | 公称圧力: | ANSI CLASS 150-900 |
| チャネル: | タイプを直接介して | 構造: | フローティングボールバルブ |
| タイプ: | フローティングボールバルブ | 仕様: | 1インチ12インチ |
| 材料: | ステンレス鋼 SS304 | 閉鎖時間: | 1秒未満 |
| テストサイクル: | 100,000の周期に | 動作圧力: | 60-90 psi |
| 定格圧力: | 1,000 psi wog | ボール素材: | SS316 ステンレス鋼 |
| ガスケット材料: | PTFE | ||
| ハイライト: | Tri Clamp Connection Pneumatic Ball Valve,Fireproof Sanitary Ball Valve,Long Life Span Hygienic Ball Valve |
||
製品の説明
Pneumatic Butterfly Valves & Ball Valves Tri Clamp Sanitary Valves Pneumatic Hygienic Ball Valves
Pneumatic Hygienic Ball Valves
Also known as non-retention ball valves, these feature a horizontal actuator. The uniquely designed valve body prevents medium retention after flow, making them ideal for pharmaceutical and biotechnology industries.

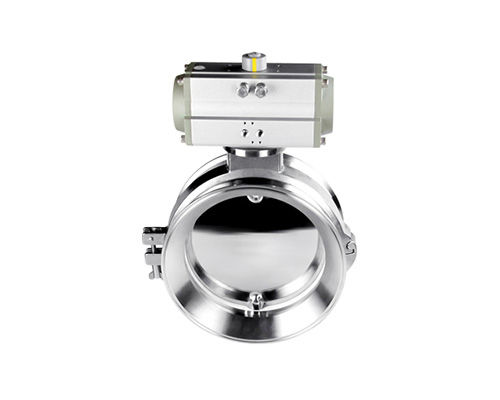

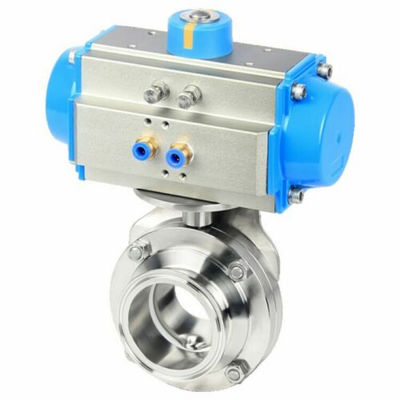

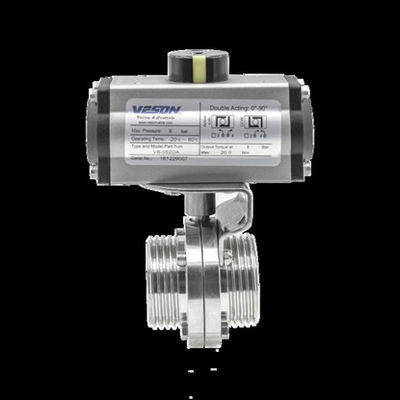

Sanitary Pneumatic Butterfly Valves
Veson heavy duty sanitary pneumatic butterfly valves provide excellent on-off service and flow control solutions using air pressure actuation.
- Stainless steel SS304 valve & body
- Fireproof construction
- Long life span
- Maintenance-free pneumatic mechanism
- Fast operation: less than 1 second at 80 PSI
- Tested at over 100,000 cycles
- Visual position indicator
- Available in air/air configuration
- Suitable for normal and closed applications

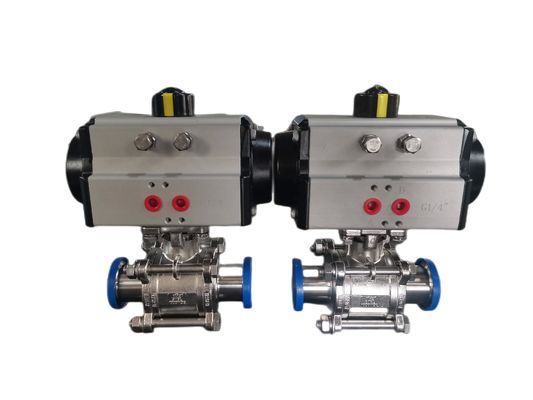

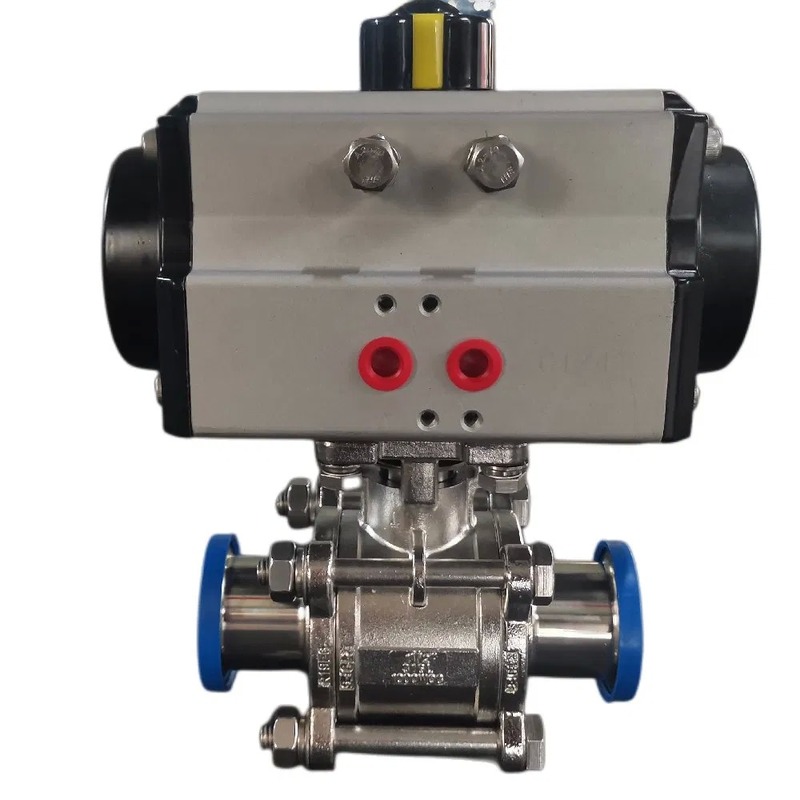

Pneumatic Ball Valves
Veson heavy duty pneumatic ball valves offer superior on-off service and flow control using air pressure actuation.
- Precision 2-way pneumatic encapsulated ball valve
- Encapsulated PTFE seats with Tri Clamp connection
- In-line design for maximum flow capacity
- Flexible installation in any position
- SS316 stainless steel ball
- PTFE gasket compliant with FDA 177.2600
- Full port design
- Rated to 1,000 PSI WOG
- Completely rebuildable
- 60-90 PSI operating range
