詳細情報 |
|||
| チャネルタイプ: | タイプを直接介して | 構造: | フローティングボールバルブ |
|---|---|---|---|
| バルブタイプ: | フローティングボールバルブ | クラス評価: | 150＃--- 600＃PN16-PN110 |
| サイズ範囲: | 1/2 "-24" DN15-DN600 | 体材: | 炭素鋼、ステンレス鋼、デュプレックスステンレス鋼、ブロンズ、インコネル |
| 接続を終了します: | フランジエンド（RF、RTJ） | 操作タイプ: | マニュアル、電気ギヤ、空気 |
| 圧力評価: | クラス150 - クラス2500またはPN16 - PN420 | 材料オプション: | WCB、LCB、CF3、CF8M、CF3M、A105、LF2、F304、F304L、F316、F316L、Hastelloy、Super Duplex、Inconel、Alloy 20 |
| 熱保存: | はい | 冷たい絶縁材: | はい |
| 全直径: | はい | 漏れ性能: | 漏れはありません |
| 建設タイプ: | 単一 | ||
| ハイライト: | Class 150-600 Pneumatic Ball Valve,PN16-PN110 V Port Ball Valve,Size 1/2"-24" Wafer Type Ball Valve |
||
製品の説明

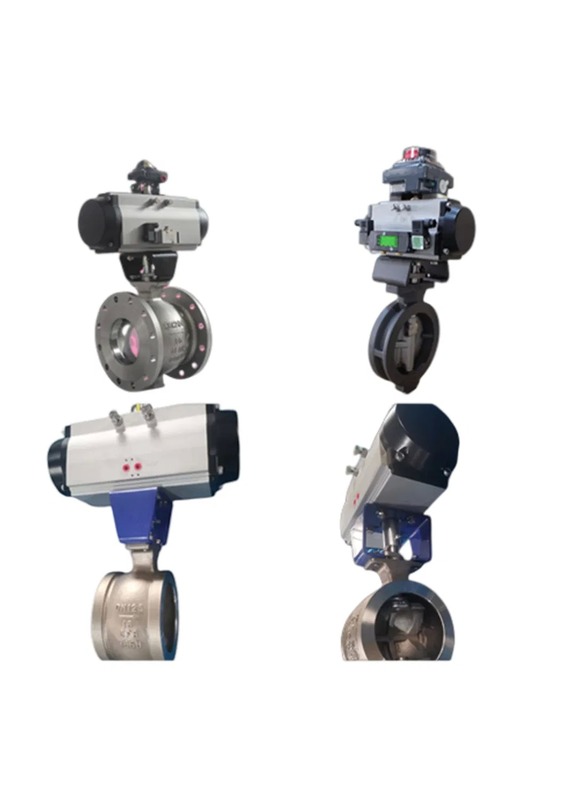

Wafer Type V Port Ball Valve with Double Action Actuator
Product Specifications
| PRODUCT NAME | Pneumatic Jacket ball valve |
|---|---|
| BRAND | Veson |
| ORIGIN | China |
| Packing | Plywood case |
| Class / Rating | 150#---600# PN16-PN110 |
| Size | 1/2"-24"DN15-DN600 |
| Materials | Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc |
| Ends | Flange End (RF, RTJ) |
| Operation | Manual, Gear, Pneumatic, Electric, etc |
Jacket Ball Valves Description
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in industries including petroleum, chemical, metallurgical, pharmaceutical, and food processing.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight compared to traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability versus cast alternatives.
Product Features
- Superior heat preservation and cold insulation capabilities
- Full-diameter design reduces heat loss
- Monolithic construction for better sealing
- Compact and lightweight design
- Enhanced pressure resistance
Applicable Standards
Sizes:
1/2" - 24", DN 15 - DN 600
Pressure Rating:
Class150 - Class 2500 or PN 16 - PN 420
Material of Valve Body:
WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
