詳細情報 |
|||
| モデル番号: | VS-240SR08-FO | 接続フォーム: | フランジ |
|---|---|---|---|
| 運転モード: | 空気圧 | 公称圧力: | JIS10-20K |
| チャネル: | タイプを直接介して | 構造: | フローティングボールバルブ |
| タイプ: | フローティングボールバルブ | 関数: | 低圧バルブ |
| 温度: | 通常の温度 | フランジ寸法を終了します: | ASME B16.5 |
| 仕様: | 1インチ12インチ | 体材: | 316ステンレス鋼 |
| ボール素材: | 316ステンレス鋼 | 茎の材料: | 316ステンレス鋼 |
| 空気圧: | 80-120 psi | ||
| ハイライト: | ASME B16.34 Pneumatic Ball Valve,ISO5211 Mounting Flanged Ball Valve,1 Million Cycles Air Actuated Ball Valve |
||
製品の説明

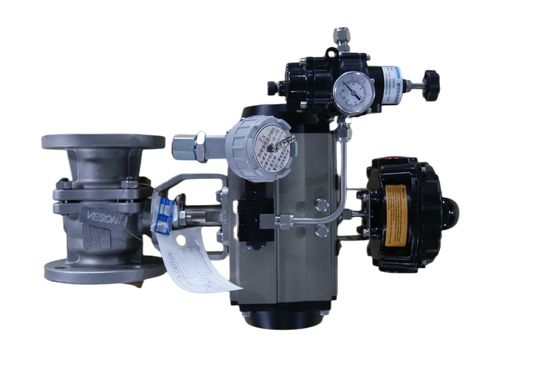

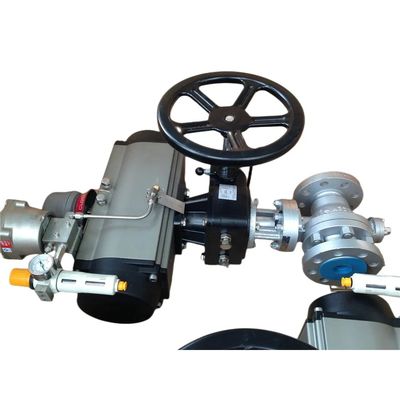

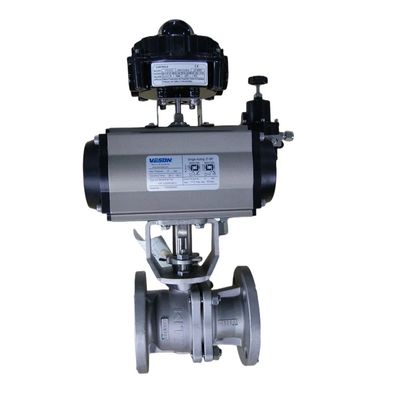

Pneumatic Actuated Flanged Ball Valve
Flanged Air Pressure Control System with Horizontal Pneumatic Actuators
Veson air actuated ANSI 150# stainless steel flanged ball valves are engineered for general chemical and industrial applications. Featuring a full port 2-piece investment cast design, these valves directly mount to actuators with standard ISO5211 mounting pads.
Double acting actuators operate with air pressure signals (80-120 PSI) for valve opening and closing. Available with high temperature valve mounting kits for extended temperature ranges or wall mounting applications. Valves can be mounted in any orientation and are tested per API 598 standards.
Ball Valve Standard Features
- Full port design for unrestricted flow
- 316 stainless steel body, ball and stem
- Blow out proof stem
- RTFE ball seats extend cycle life
- Triple RTFE/Viton stem seal design, live loaded and adjustable
- ISO5211 direct mounting
- Anti-static design
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Quarter turn rack & pinion design
- Highly visible valve position indicator
- Compatible with dry or lubricated pilot air
- Factory lubricated for normal service life
- Anodized aluminum body with epoxy-polyester coated end covers
- Namur & ISO mounting compatibility
