詳細情報 |
|||
| モデル番号: | VS-063DA | 接続フォーム: | フランジ |
|---|---|---|---|
| 運転モード: | 空気圧 | 公称圧力: | PN1.0-32.0MPA |
| チャネル: | タイプを直接介して | 構造: | フローティングボールバルブ |
| タイプ: | フローティングボールバルブ | 温度: | 通常の温度 |
| 3 方向型: | l-ポート | フランジ寸法を終了します: | ASME B16.5 |
| テスト標準: | ASME B1634 | 仕様: | 1インチ12インチ |
| 体材: | 316ステンレス鋼 | ボール素材: | 316ステンレス鋼 |
| 茎の材料: | 316ステンレス鋼 | ||
| ハイライト: | 2'' 3'' DN50 DN80 Flanged Ball Valve,ANSI-150lb Pneumatic Ball Valve,316 Stainless Steel Ball Valve |
||
製品の説明

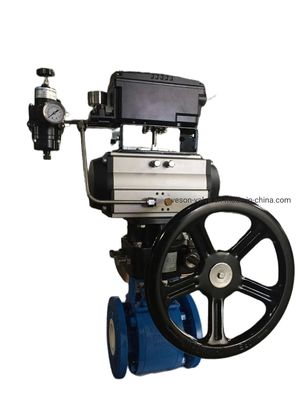

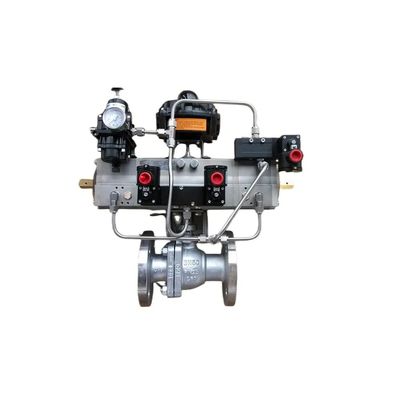

Pneumatic 2 Way/3 Way Ball Valve - ANSI 150# Flange End
DN50/DN80 | L-PORT/T-PORT | Direct Mount Type
Veson air actuated ANSI 150# stainless steel flanged ball valves are engineered for demanding chemical and industrial applications. Featuring a full port 2-piece investment cast design, these valves directly mount to actuators with standard ISO5211 mounting pads.
Ball Valve Standard Features
- Full port design for unrestricted flow
- 316 stainless steel construction (body, ball, and stem)
- Blow-out proof stem design
- RTFE ball seats for extended cycle life
- Triple RTFE/Viton stem seal design, live loaded and adjustable
- ISO5211 direct mounting capability
- Anti-static design for safety
Pneumatic Actuator Features
- Extended cycle life (1 million cycles)
- Quarter turn rack & pinion operation
- Highly visible valve position indicator
- Compatible with dry or lubricated pilot air
- Factory lubricated for normal service life
- Anodized aluminum body with epoxy-polyester coated end covers
- Namur & ISO mounting compatibility
Technical Specifications
| Operating Pressure | 80-120 PSI |
|---|---|
| Mounting | Direct mount with ISO5211 pad |
| Orientation | Can be mounted in any position |
| Testing Standard | API 598 |
| Temperature Range | Standard or extended with optional high temperature kit |
Note: Optional accessories including high temperature valve mounting kits for extended temperature range or wall mounting applications are available.
